Xinda boiler

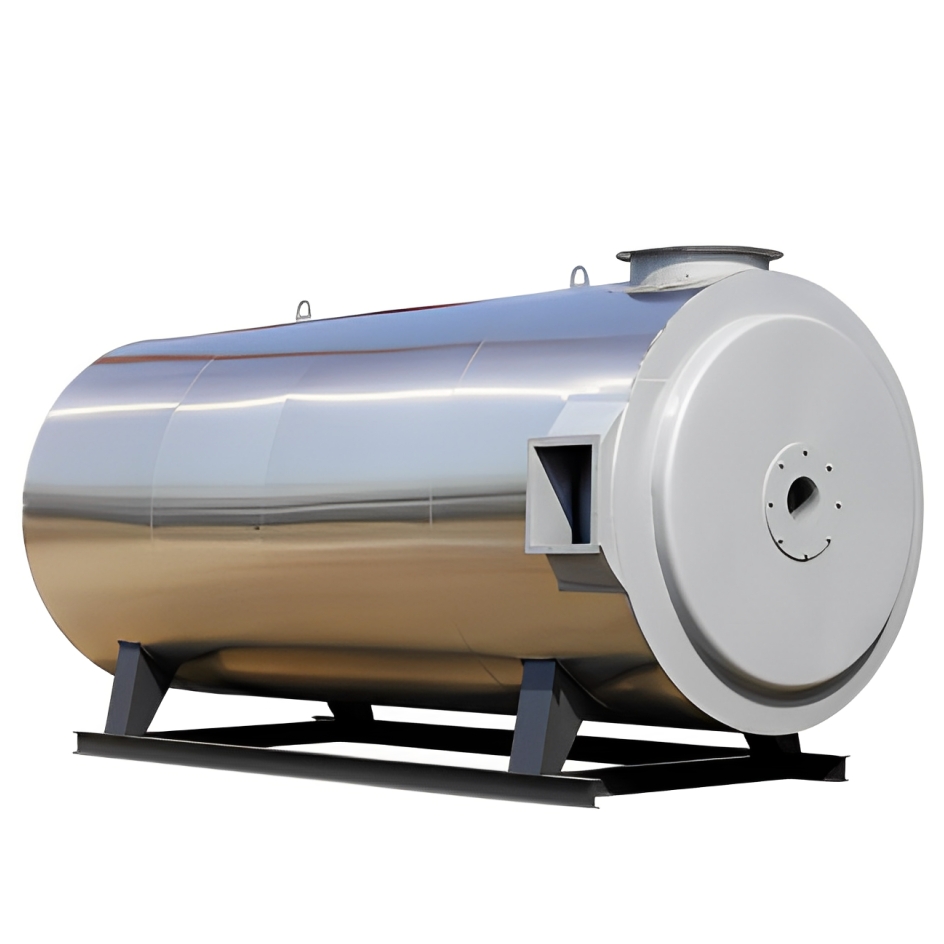

WRF series oil gas hot air stove is a heating equipment that uses diesel and natural gas as fuel, air as the carrier, and outputs pure hot air through forced circulation by fans. The multi-layer spiral groove plate heat exchange technology and advanced turbulence methods are adopted, which greatly enhances the heat exchange effect. The hot air stove is favored by many users for its compact structure, easy installation and stable operation.

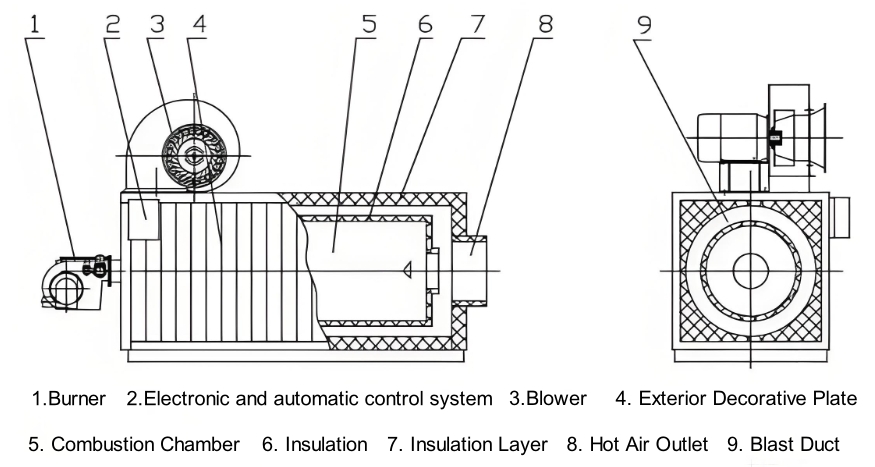

Working Principle
Its working principle is to generate high-temperature flames and combustion products through fuel combustion, and then provide sufficient air through fans or pneumatic combustion devices to ensure the complete combustion of the fuel and generate high-temperature hot air. These hot air are conveyed to the designated heating areas through heat exchangers, such as industrial furnaces, etc.
| Type | WRF-120 | WRF-150 | WRF-180 | WRF-200 | WRF-240 | WRF-300 |
| Rated Power(mw) | 0.12 | 0.24 | 0.35 | 0.49 | 0.7 | 1.05 |
| Applicable Temperature(℃) | 100-400 | |||||
| Thermal Efficiency(%) | ＞89 | |||||
| Weight(ton) | 6.6 | 7.2 | 8.2 | 11 | 14 | 16 |
| Note: Parameter is for reference only, if any changes should follow the actual drawing | ||||||
Application Field
It is used for drying in the chemical, food, medicinal, tobacco and various other industrial materials, as well as for drying in the printing and dyeing, painting industries, agricultural greenhouses, and home heating, etc.
