Xinda boiler

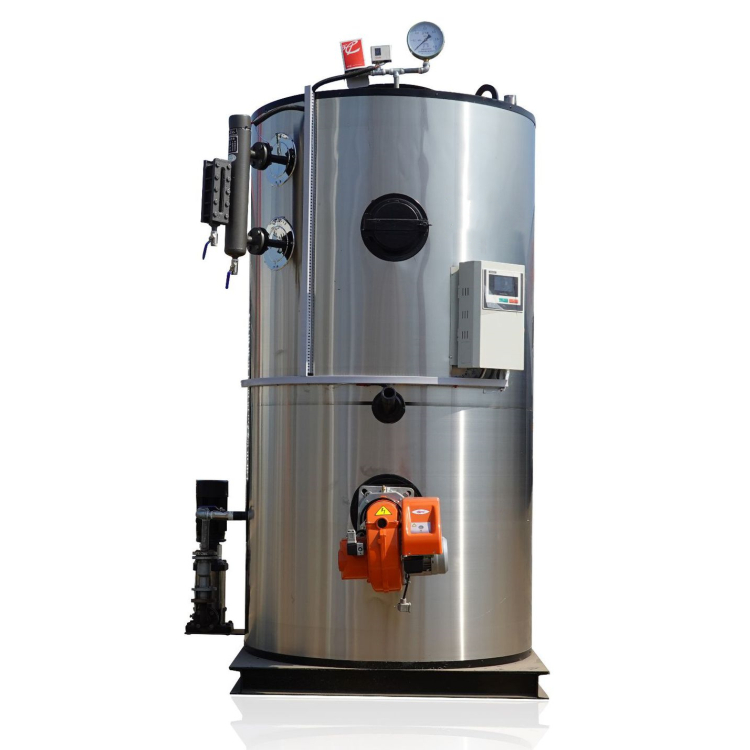

LHS series oil gas steam generators are vertical fire tube steam generator. This type of boiler achieves the dvantages of complete combustion, pollution-free emissions, convenient operation and easy installation. This type of boiler features high thermal efficiency, large output, strong load adaptability, high degree of automation, convenient operation, and safe and reliable operation. It is an ideal green and environmentally friendly product that is highly efficient, low-consumption, and low pollution.
Main Feature
1.It adopts a vertical structure, occupies a small area and is extremely convenient to install.
2. The smoke pipe adopts a threaded structure, which enhances the heat transfer effect.
3. It is designed with multiple protection functions such as over-temperature, over-pressure, water shortage, leak detection and flameout, ensuring the safe and reliable operation of the boiler.
4. It is equipped with imported burners with good self-control performance to achieve fully automated operation.
5. The LHS series vertical oil, gas and steam generators feature high thermal efficiency, stable output and strong load adaptability.
Technical Parameters
| Model | Rated evaporation
Capacity(t/h) |
Working Pressure(Mpa) | Rated Steam Temperature(℃) | Fuel Consumption | Thermal Efficiency
(%) |
Weight
(kg) |
|
| Light Diesel(Kg/h) | Natural Gas (Nm³/h) |
||||||
| LHS0.1 | 0.1 | 0.4/0.7/1.0 | 151/170/184 | 7.6 | 9.3 | ＞93 | 252 |
| LHS0.2 | 0.2 | 0.4/0.7/1.0 | 151/170/184 | 13.5 | 16.4 | ＞93 | 850 |
| LHS0.3 | 0.3 | 0.4/0.7/1.0 | 151/170/184 | 20.3 | 24.6 | ＞93 | 1100 |
| LHS0.5 | 0.5 | 0.4/0.7/1.0 | 151/170/184 | 33.8 | 41.1 | ＞93 | 1600 |
| LHS0.7 | 0.7 | 0.4/0.7/1.0 | 151/170/184 | 47.4 | 57.5 | ＞93 | 2000 |
| LHS1.0 | 1 | 0.4/0.7/1.0 | 151/170/184 | 67.6 | 82.1 | ＞93 | 2500 |
| LHS2.0 | 2 | 0.4/0.7/1.0 | 151/170/184 | 135.3 | 164.3 | ＞93 | 4500 |
| Note: Parameter is for reference only, if any changes should follow the actual drawing. | |||||||
Accessories

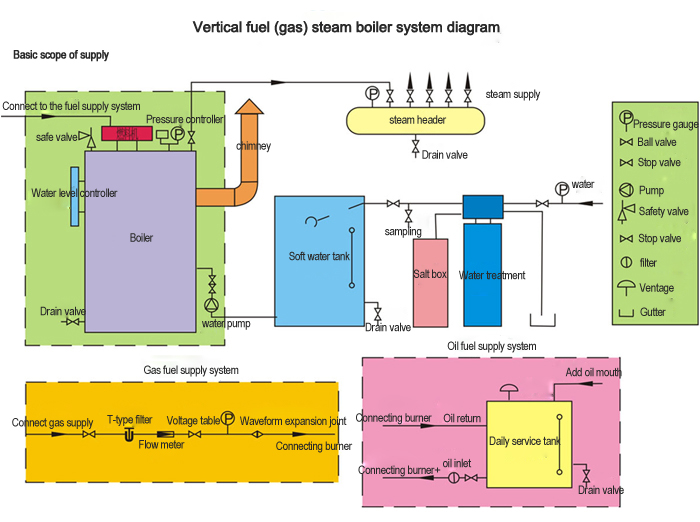

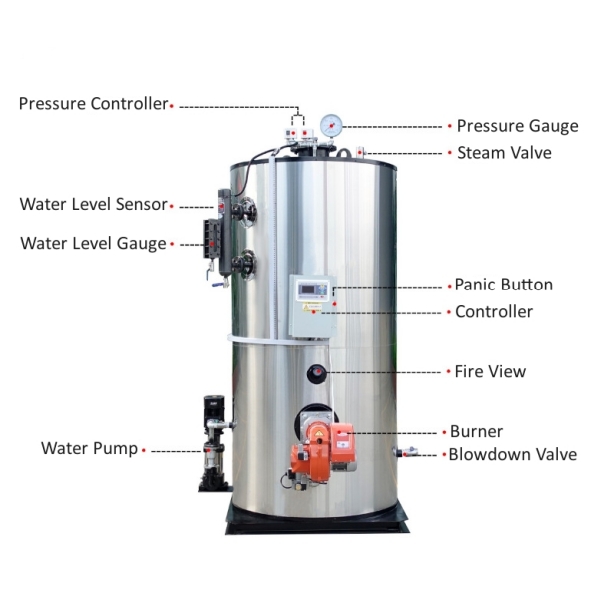

LHS series vertical gas oil steam generators include the boiler body, burner, instrument valves, steam header, chimney, air duct, economizer, water pump, induced draft fan, blower, etc.
