WSH Series Horizontal Biomass Wood Steam Generator

WSH series wood biomass steam generator, using low-cost biomass particles as fuel, is an automatic non-inspection steam generator. Energy saving and environmental protection. Using the most advanced semi-gasification composite combustion technology, microcomputer control system and modular design, with automatic intelligent operation, unsupervised, no inspection, simple operation and maintenance, fast steam production, steam dry high advantages. The best choice to replace coal, oil, gas and electric heating boilers, saving 30-80% of operating costs.

Main Feature

Combustion technology: the whole furnace integrated water cooling heat exchange, two three-dimensional oxygen supplement, fractional semi-gasification micro negative pressure combustion, full combustion, uniform heating, energy saving and environmental protection at the same time also greatly extend the service life of the equipment.

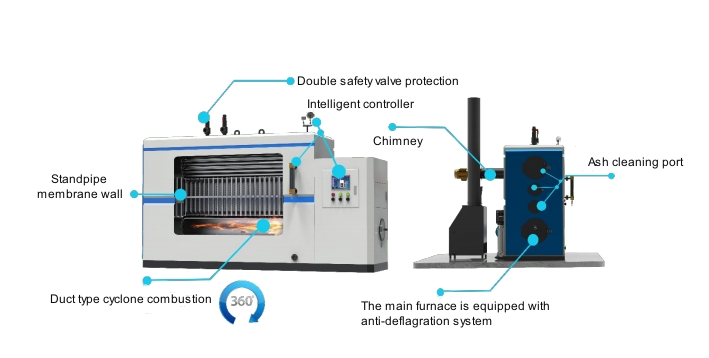

Structure advantage: unique domestic double barrel standpipe membrane wall structure, using horizontal four return design, each return is equipped with independent cleaning mouth, convenient cleaning, no dead Angle, ten years of use without blocking ash. Integrated water cooled furnace, wind tube type cyclone combustion, high temperature area flame rotation radiation furnace, increase the flame stroke in the first return, combined with two, three, four return serpentine flue gas fluid dynamic design, make the equipment fully heat transfer. hot efficiency is 20% higher than similar products, combined with energy saver, smoke exhaust temperature as low as 98℃.
Control system: the whole machine adopts intelligent control system, one key start, automatic ignition, multi-gear accurate adjustment, positive and negative pressure self-adjustment, intelligent fault alarm.
Safety guarantee: the whole system is equipped with anti-dry burning, anti-tempering, anti-water shortage, overpressure protection, furnace stop delay protection, five fold chain protection, for customer safety.

Boiler Flow Chart

Available Fuel

WSH series horizontal biomass wood steam generator is suitable for coal and various biomass fuels, such as charcoal, biomass pellets, wood chips, sawdust, wood waste, wood residues, wood cuttings, wood strips, rice husks, rice stalks, rice straw, corn cobs, corn stalks, rice husks, agricultural waste, etc.

Technical Parameters
